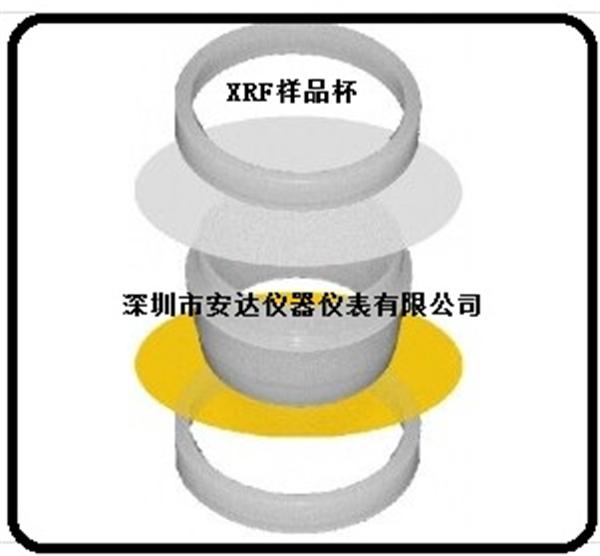

XRF樣品杯，100個/包，兩端開口，加固定環。
通用于所有X光譜儀：島津shimadzu、牛津儀器Oxford、斯派克Spectro、布魯克Bruker、精工SII、、理學Rigaku、堀場Horiba、帕納科Panalytical、尼通Niton、伊諾斯Innox-X、天瑞Skyray、美國PE公司、美國瓦里安公司、利曼、斯派克、JY、精譜、安捷倫等。
|
目錄編號
|
描述
|
外部直徑
|
最大外部直徑
|
高度
|
孔徑
|
容量，cc
|
X射線設備兼容性
|
樣本杯蓋目錄編號
|
樣本杯屬性
|
個/包
|
|
|
|
|
|
|
|
（立方厘米）
|
|
|
|
|
1530
|
雙開口端
|
1.22”
|
無
|
0.91”
|
0.94”
|
9
|
Asoma, Bruker, Jordan, Fis, Jordan, Kevex, Metorex,
Panalytical, Philips, Rigaku, Siemens, Spectrace, Spectro, Thermo
|
1630
|
兩個開口端，用于頂部樣本加載與附著微孔膜或咬合蓋；“珠對凹孔”咬合環幾何結構。SE目錄號包含集成的薄膜修
|
|
|
|
(31.0mm)
|
|
(23.1mm)
|
(23.9mm)
|
|
|
|
|
Chemplex2100系列樣品杯
SpectroCup? Internal Overflow Reservoir Sample Cups
VENTED “SNAP-ON” CAP and TRIMLESS? THIN-FILM SLEEVE ATTACHMENT
Snap-On Cap establishes a series of physical baffles that provide resistance to powdered sample withdrawal under evacuated conditions. Vent hole equalizes pressure differentials within the sample cup and sample chamber under helium flushes and vacuum operating conditions.
Cell integrates an Internal Overflow Reservoir for collecting thermally sensitive liquid samples within the sample cup reducing the likelihood of inadvertent spillage into the sample chamber; serves as a filling level guide for uniformity of sample volume.
Integrated flange on outer cell neck diameter physically defines the distance of TrimLess?Sleeve travel over the Cell during the thin-film sample support window attachment procedure; ensures reproducible sample cup assemblies and statistically accurate x-ray data.
Extra wide TrimLess@Sleeve envelopes extraneous thin-film sample support window material toeliminate trimming excess and dealing with annoying static prone clippings.
.規格：見下表
包裝：100個/包
|
CAT.NO.
|
OUTSIDE DIAMETER
|
Max. Dia.
|
HEIGHT
|
APERTURE
|
Knob Cap
|
CAPACIT,cc
|
CAPS/PKG
|
|
AD2131
|
1.22” (30.9mm)
|
1.36” (34.5mm)
|
1.15” (29.2mm)
|
1.04” (26.4mm)
|
No
|
9
|
100
|
|
AD2132
|
1.24” (31.5mm)
|
1.36” (34.5mm)
|
1.15” (29.2mm)
|
1.04” (26.4mm)
|
No
|
9
|
100
|
|
AD2135
|
1.35” (34.3mm)
|
1.46” (37.1mm)
|
1.17” (29.7mm)
|
1.10” (27.9mm)
|
No
|
11
|
100
|
|
AD2140
|
1.58” (40.1mm)
|
1.70” (43.2 mm)
|
1.17” (29.7mm)
|
1.38” (35.0mm)
|
No
|
19
|
100
|
|
AD2143
|
1.58” (40.1mm)
|
1.62” (41.1mm)
|
1.17” (29.7mm)
|
1.38” (35.0mm)
|
No
|
19
|
100
|
|
AD2144
|
1.58” (40.1mm)
|
1.62” (41.1mm)
|
1.33” (33.8mm)
|
1.38” (35.0mm)
|
Yes
|
19
|
100
|
|
AD2145
|
1.76” (44.7mm)
|
1.81” (46.0mm)
|
1.16” (29.5mm)
|
1.57” (39.9mm)
|
No
|
22
|
100
|
|
AD2146
|
1.76” (44.7mm)
|
1.81” (46.0mm)
|
1.32” (33.5mm)
|
1.57” (39.9mm)
|
Yes
|
22
|
100
|
|
AD2147
|
1.76” (44.7mm)
|
1.85” (46.9mm)
|
1.16” (29.5mm)
|
1.57” (39.9mm)
|
No
|
22
|
100
|
|
AD2148
|
1.76” (44.7mm)
|
1.85” (46.9mm)
|
1.32” (33.5mm)
|
1.57” (39.9mm)
|
Yes
|
22
|
100
|
|
AD2195
|
1.71” (43.4mm)
|
1.77” (45.0mm)
|
1.56” (39.6mm)
|
1.50” (38.1mm)
|
Yes
|
22
|
100
|
美國Chemplex工業公司自1971年成立以來，一直堅持專注于X射線光譜分析的樣品制備領域，擁有多系列獨有的特色產品線以及產權，以質量和全面的X射線的樣品制備產品線享譽全球。美國Chemplex公司一直以產品創新、質量保證、技術支持、服務周到、準時交貨為原則，幾乎所有的產品有庫存。
